Next Pro Audio PREMIUM – PXA8001

Beschrijving

Specifications:

Technical Data

Type: 4-Channel PX System Power Rack

Amplifier Module

Amplifier Technology: SMPS with PFC Class D Amplifier

Cooling: Temperature Controlled Internal Fans

Average Efficiency: >79%

Total Output Power: 8000W

LF1 Section Output Power: 2000W/4Ω

LF2 Section Output Power: 2000W/4Ω

MF Section Output Power: 2000W/4Ω

HF Section Output Power: 1000W/8Ω

Controller: 24 bit/48kHz 3 channel DSP

Digital Crossover: 150Hz/1200Hz, 24dB/oct L-R

System Presets: 4 Factory Presets (PXH64 Flat, PXH64 Music, PXH95 Flat, PXH95 Music)

PC Control: Real time control plus monitoring via Powersoft Armonia

AC Operating Voltage: 90 – 264Vac, 50 – 60Hz

Nominal Power Consumption: 600W (2.6A)

Mains Connector: Neutrik Powercon

Enclosure

Construction: 15mm Multi-Laminate Birch Ply

Finish: Textured Black Semi-Matte Coating

Protective grill: Black Perforated Steel

Fittings: 12 x M8 for Optional Rigging/Tilt System

Handles: 1 on Each Side

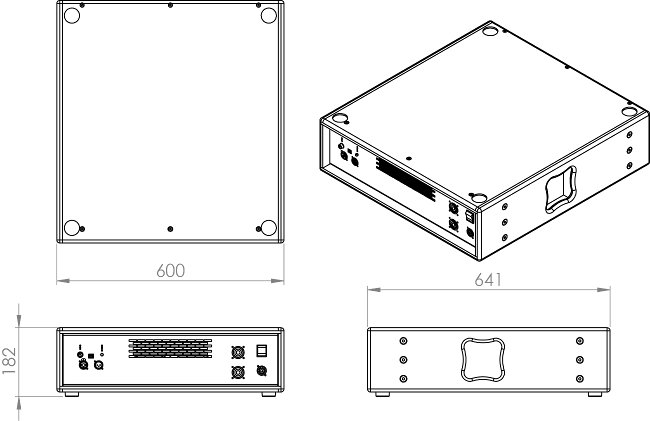

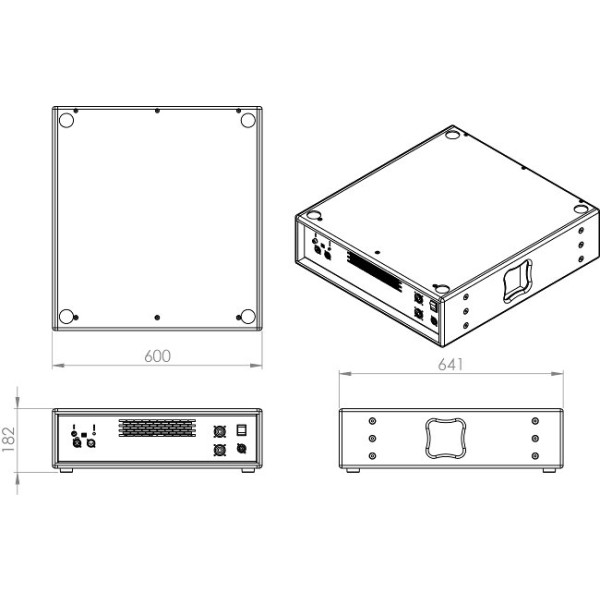

Dimensions (WxHxD): 600 x 182 x 641mm (23.62 x 7.17 x 25.24in)

Net Weight: 19kg (41.9lb)

Shipping Weight: 20.2kg (44.5lb)
