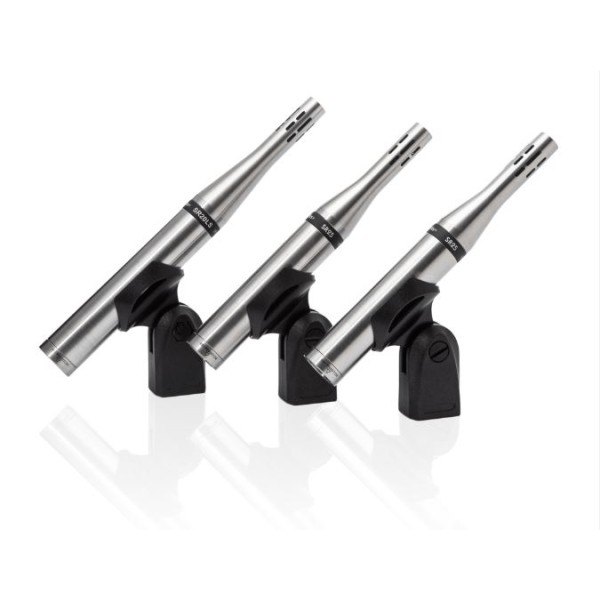

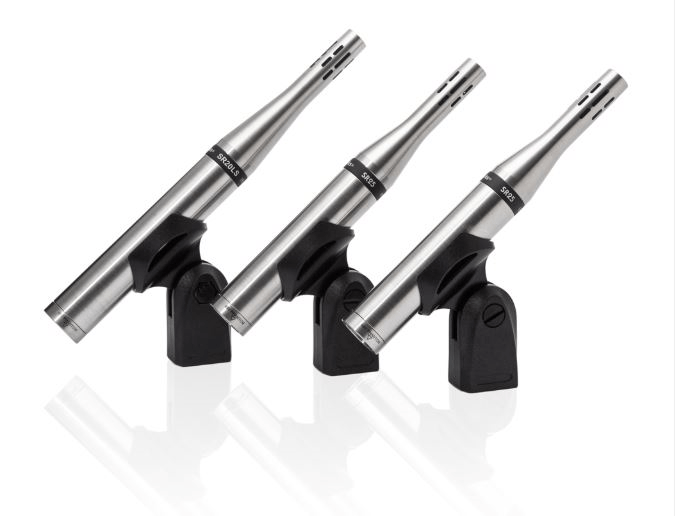

Earthworks – DK3

Beschrijving

SR25 Specifications

Frequency response: 20Hz -25kHz ±2dB at 12 inches (30cm)

Polar Pattern: Cardioid

Sensitivity: 10mV/Pa (-40dBV/Pa)

Power Requirements: 24-48V Phantom, 10mA

Peak Acoustic Input: 145dB SPL

Output: XLR (pin 2+)

Output Impedance: 65Ω, balanced between pins 2 & 3

Minimum Load: 600Ω between pins 2 & 3

Noise: 20dB SPL equivalent (A weighted)

Dimensions L x D: 165 x 22 mm (6.5 x .860 inches)

Weight: 160g (.35lb)

SR20LS Specifications

Frequency Response: 20Hz -20kHz

Polar Pattern: Cardioid

Sensitivity: 3mV/Pa (-50dBV/Pa)

Power Requirements: 24-48V Phantom, 10mA

Max Acoustic Input: 150dB SPL

Output: XLR (pin 2+)

Output Impedance: 200Ω balanced (between pins 2 & 3)

Min Output Load: 1000Ω between pins 2 & 3

Noise: 20dB SPL equivalent (A weighted)

Dimensions (L x D): 192mm x 22mm (7.57 x .860 inches)

Weight: .36 lb (164g)
