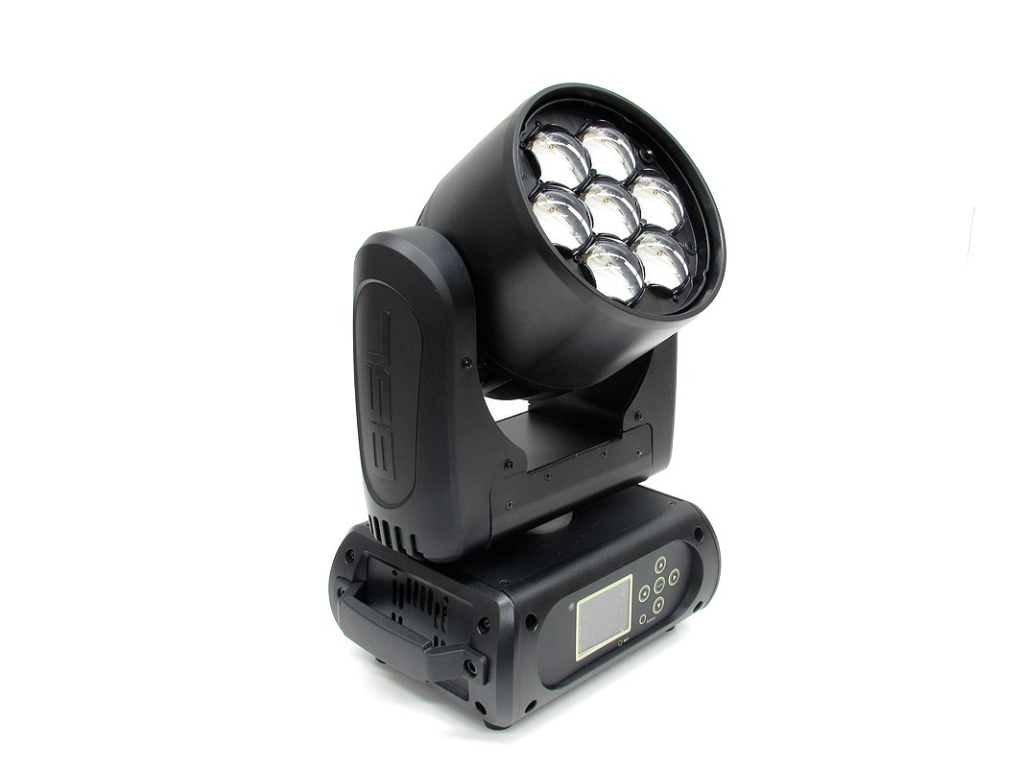

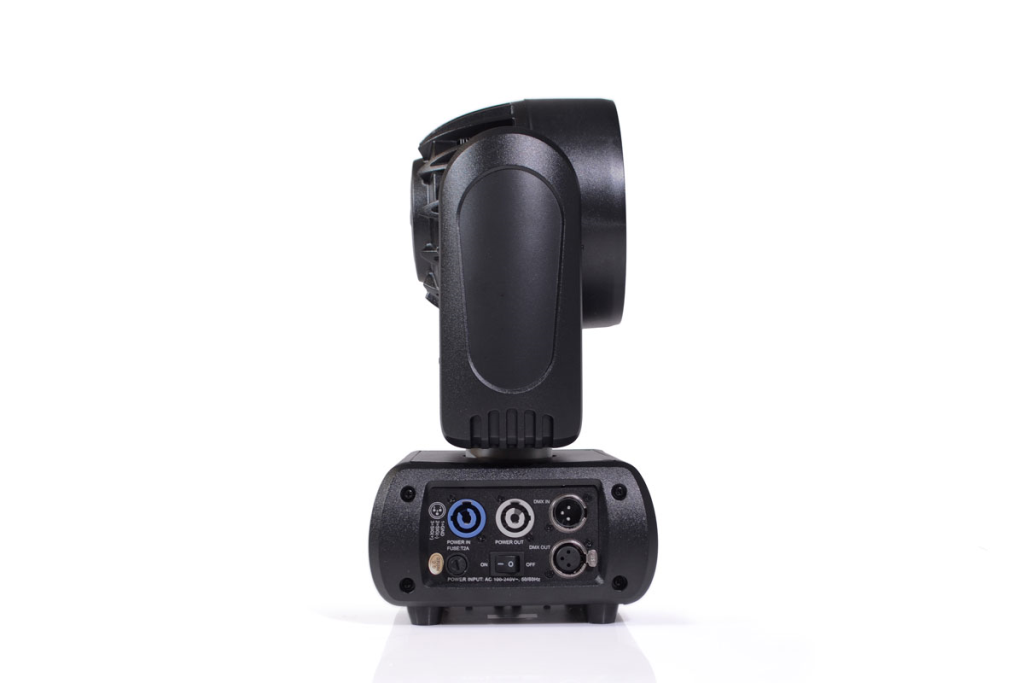

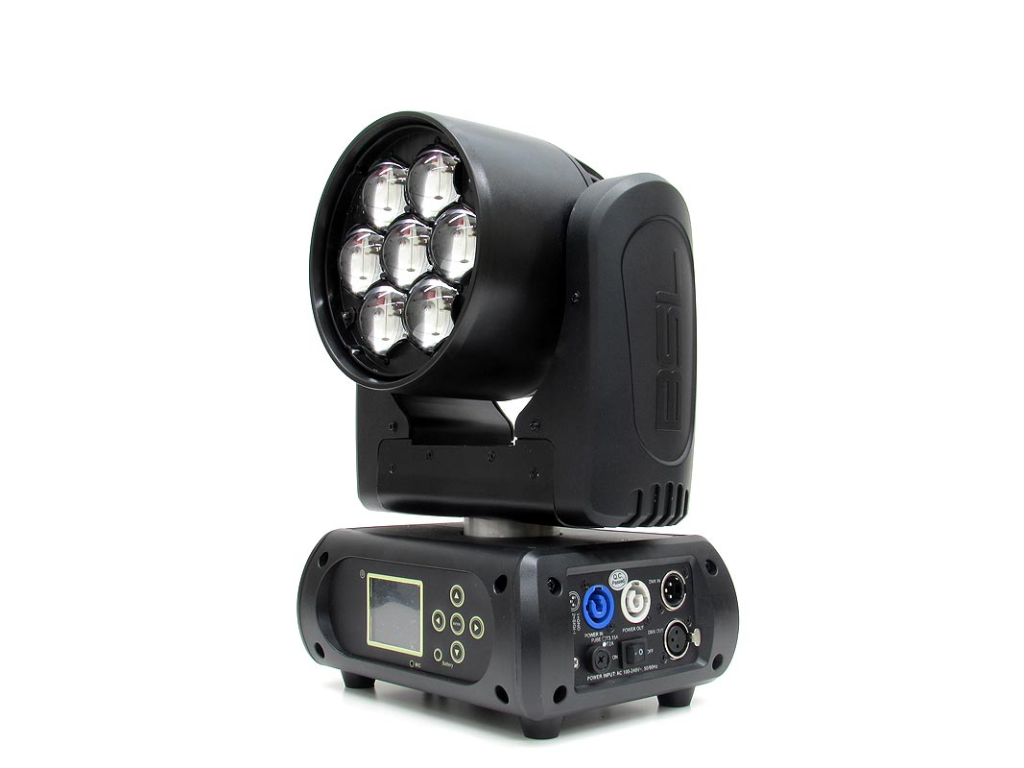

BSL – Magic Zoom 7

Beschrijving

Compacte en vliegensvlugge zoom movinghead, zo kun je de BSL Magic Zoom 7 het beste omschrijven. De Magic Zoom is voorzien van een speciale honinggraat lens, waardoor er ongekende efficienties worden behaald. Verder is de Magic Zoom 7 uitgerust met 3-fase motoren voor snelle en stille bewegingen, Remote Device Management om op afstand de volledige controle te hebben en Pixelgestuurde LEDs om je creativiteit de vrije loop te laten.



Specificaties:

Source

• Light Source: 7pcs OSRAM 15W 4in1 Leds, PIXEL Control

• Led Life: 60.000 Hours

• Luminous Flux: 3500 Lumen 9700lux@3m At 6°

• Control: Remote On/Off Via DMX

• Ballast: Switching Mode Power Supply



Optical System

• Beam Angle: 6° To 60°

• X/Y

• Pan: 630° (1.45 Sec) Or 540°(1.2 Sec), Tilt: 265° (0.72 Sec)

• 16-Bit Resolution

• Auto Repositioning



Features

• DMX Channels: 18/19/20/50

• Super Fast, Smooth And Silent Movement

• Pixel Control Of Every Single Led On RGBW Separately

• Nice Maping Effect With Dimming And Color Fading At The Same Time

• RGBW Four Colors Mixing To Create Vivid, Saturated And Uniform Color Effect

• Pre-Set Color Temperature At 2700K, 3200K, 4200K, 5600K And 8000K

• Zoom From 6° To 60°

• Full Range 0-100% Dimmer

• Various Strobe

• RDM Function To Change DMX Address, Flip Display, Reverse X/Y

• Software Upgrade Via DMX

• Hibernation When Lost DMX For Preset Time

• Indicate Temperature Info Of Base, Arm And Lamp

• Fan Speed Auto Change According To Temperature

• Heat Pipe For Cooling



Display

• 2.4 inch LCD Display With English/Chinese/French/Spanish Menu

• Auto Lock

• Flip

• Back-Up Communicating IC

• Pre-Set Wireless And Battery Holder



Power

• Max Power Consumption: 126W

• Power Supply: Electronic Auto-Ranging

• Input Voltage Range: 100–240V, 50-60Hz



Dimension and Weight

• Fixture: 249 X 179 X 369MM

• Net Weight: 6KG

• Gross Weight: 8KG



Rigging

• Mounting Points: 4 ¼-Turn Locks

• 2 X Omega Brackets With ¼-Turn Quick Locks

• Safety Rope





Kijk voor productinformatie en downloads op www.bsl-lighting.com
