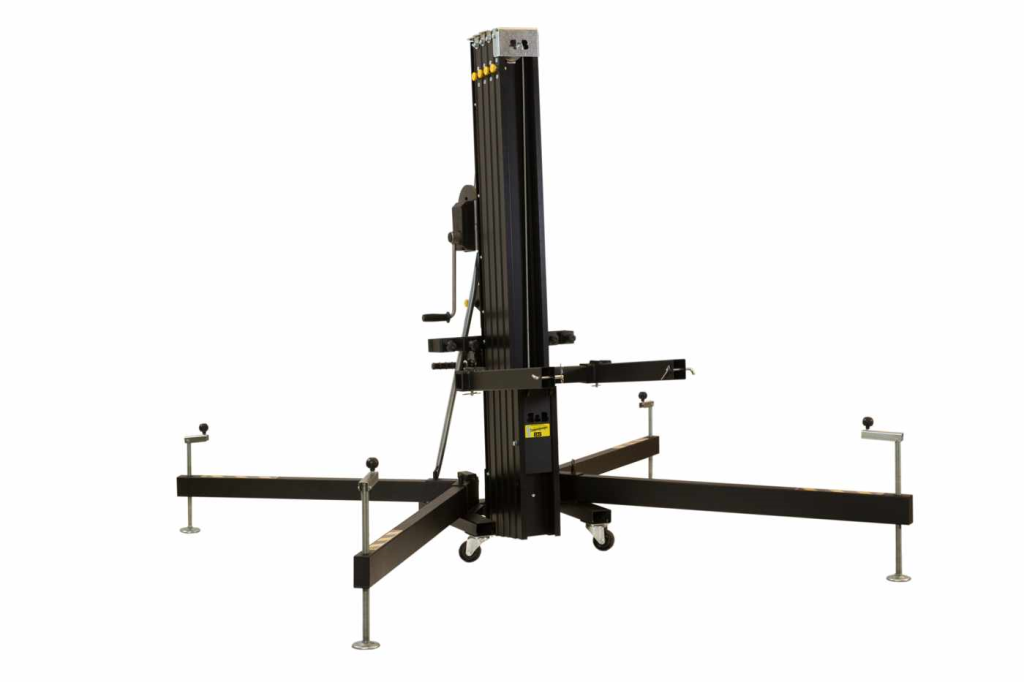

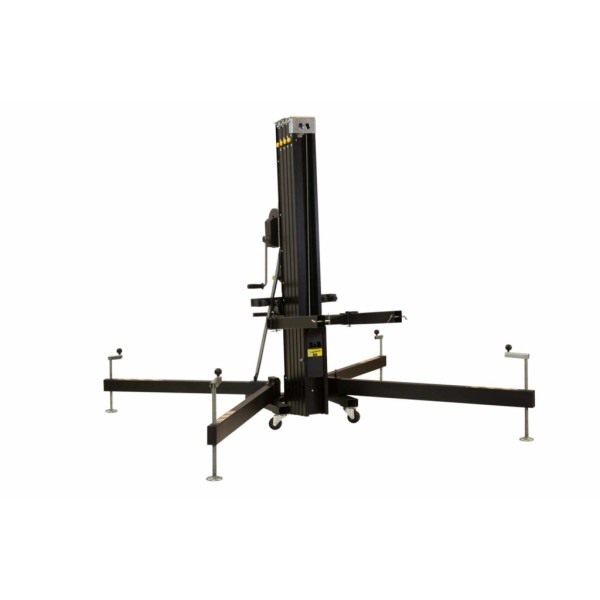

Block & Block – GAMMA-50

Beschrijving

Specificaties:

• Five-part telescopic ground support

• 6 mm steel rope

• Safety bolts to lock the different sections at different heights

• Locking bolts in the base area to lock the booms

• Booms with adjustable spindle and steel plate with non-slip rubber base

• Corrosion protection through epoxy coating

• Water level to ensure a vertical position

• Earthing connection

• Transport rolls to move the lift when retracted

• AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE

• Galvanized steel ropes 6×19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2

• Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5

• Made in Europe
