Beschrijving

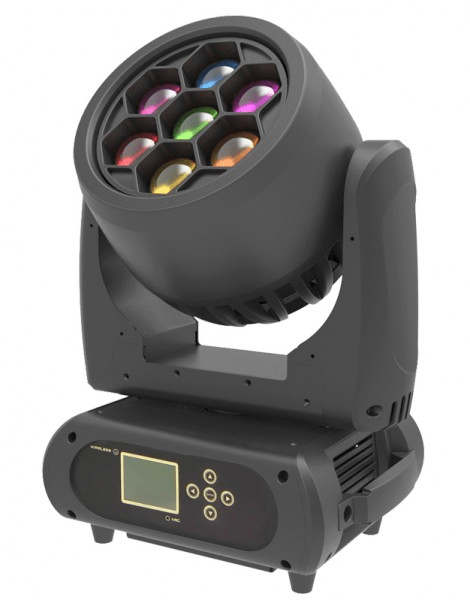

Deze enorm felle LED movinghead is een van de paradepaarden van de BSL-familie. Met de toevoeging van pixel dimming kun je met deze beam enorm veel effecten maken. Dit is het 'kleine' broertje van de BSL Magic Beam 19.
SOURCE
· LIGHT SOURCE: 7PCS OSRAM 32W 4IN1 LEDS WITH PIXEL DIMMING
· LED LIFE: 60.000 HOURS
· LUMINOUS FLUX: 7000LUMEN, 43000LUX@3M@4°
· CONTROL: REMOTE ON/OFF VIA DMX
· BALLAST: SWITCHING MODE POWER SUPPLY
OPTICAL SYSTEM
· BEAM ANGLE: 4° TO 36° X/Y
· PAN: 630° (1.56 SEC) OR 540° (1.3 SEC), TILT: 265° (0.85 SEC)
· 16-BIT RESOLUTION
· AUTO REPOSITIONING
· 3 PHASE MOTOR FOR FAST AND QUIET MOVEMENT
FEATURES
· DMX CHANNELS: 19/21/22/51
· SUPER FAST, SMOOTH AND SILENT MOVEMENT
· 7PCS LED RGBW PIXEL DIMMING
· RGBW FOUR COLORS MIXING TO CREATE VIVID, SATURATED AND UNIFORM COLOR EFFECT
· PRE-SET COLOR TEMPERATURE AT 2700K, 3200K, 4200K, 5600K AND 8000K
· ZOOM ANGLE FROM 4° TO 36°
· FULL RANGE 0-100% DIMMER
· VARIOUS STROBE
· RDM FUNCTION TO CHANGE DMX ADDRESS, FLIP DISPLAY AND REVERSE X/Y
· SOFTWARE UPGRADE VIA DMX
· HIBERNATION WHEN LOST DMX FOR PRESET TIME
· INDICATE TEMPERATURE INFO OF BASE, ARM AND LED
· FAN SPEED AUTO CHANGE ACCORDING TO TEMPERATURE
· HEAT PIPE FOR COOLING DISPLAY
· 2.4 INCH LCD DISPLAY WITH ENGLISH/CHINESE/FRENCH/SPANISH MENU
· AUTO LOCK
· FLIP
· BACK-UP COMMUNICATING IC POWER
· MAX POWER CONSUMPTION: 265W
· POWER SUPPLY: ELECTRONIC AUTORANGING
· INPUT VOLTAGE RANGE: 100–240V, 50-60HZ
DIMENSION AND WEIGHT
· FIXTURE: 250X324X456 MM
· PACKING: 340X420X520 MM
· NET WEIGHT: 12KG
· GROSS WEIGHT: 14KG
RIGGING
· MOUNTING POINTS: 4 ¼-TURN LOCKS
· 2 x OMEGA BRACKETS WITH ¼- TURN QUICK LOCKS
· SAFETY ROPE
Kijk voor productinformatie en downloads op www.bsl-lighting.com
